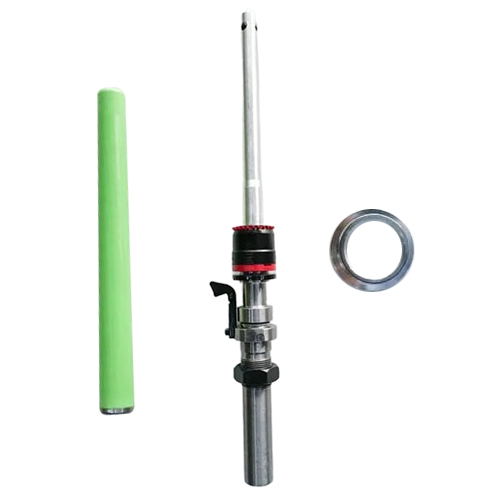

Marzoli Ring Frame Spindle Bolster

Price 1200.0 INR/ Piece

Get a Price/Quote

Marzoli Ring Frame Spindle Bolster Specification

Surface Finish
POLISHING

Noise Level
75 db

Size
18.5 to 22 mm

Capacity
1000 Kg/day

Hardness
Rockwell

Diameter
40 Millimeter (mm)

NO. Of Hole
1

Thread Type
25MM X 1.5 PITCH

Features
RUST FREE

Product Type
Textile Machinery Components

Material
Aluminum

Textile Machine Type
Spinning Machine

Spare/Component Type
Spindle

Usage
Industrial

Speed
25000 RPM

Weight
400 GSM (gm/2)

Warranty
1

Marzoli Ring Frame Spindle Bolster Trade Information

Minimum Order Quantity
100 Pieces

FOB Port
Mundra Port

Supply Ability
7000 Pieces Per Month

Delivery Time
45 Days

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
BOX PACKING OR WOODEN BOX

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Marzoli Ring Frame Spindle Bolster

Products Spindles: HF-1, HF-21, HF-100, CS1, CS 21 insert

For Machine: Reiter, L.R (LMW) LR6, LR8, LR9, LR7 machines, Texaco, KTTM, MMC, Marzoli, Zinser, Textool, suessen ,

For Process Type: cotton industries, man-made fibers, wool, and blends

Product Description

Material : spindle blade : EN 31 alloy (bearing steel), aluminum plug : LM 6, wharves : EN 24 alloy
Spindles wharves diameter 18.5 to 22 mm.
high quality , low vibration, Operating long life
Supplies complete set with flange, nut, and spindle lock.
manufacture spindle for ring diameter : 38mm , 40mm , 42mm, 45mm, 48mm etc
We supplied spindle with specified insert as, Vindex industries.

Spindle Application

Vindex Industries can reduce the weight of spindle top part (new design )
Vindex Industries reduce vibration up to 0.05 mm/sec.
Recommended for longer tube (165 to 250mm)
Vindex reduce noise level to 75 DBA
Suitable for any make ring spinning machine
For longer high precision Operating.
Short delivery time

Advantages

Low noise & Power
High speed up-to 25,000 rpm.
Dynamically balanced.
Each Stage Quality Checks to ensure exquisite quality system maintenance for superior performance.
Long lubricating cycle

High-Quality Construction

Built from robust EN-31 steel and lightweight aluminum, this spindle bolster is crafted to handle the rigorous demands of industrial spinning. The polish-finished surface enhances corrosion resistance, ensuring prolonged lifespan and consistent reliability even under heavy daily use.

Superior Performance for Spinning Machines

Capable of handling up to 1,000 kg of yarn per day at speeds reaching 25,000 RPM, this spindle bolster optimizes textile production. Its precise dimension (290 mm length, 40 mm diameter) and rust-free design make it a dependable choice for modern mills.

Easy Installation and Maintenance

Designed for straightforward integration with Marzoli spinning machines, this spindle bolster features a spindle lock hook and single-hole structure. The product is easy to install, requiring minimal maintenance, and is backed by a one-year warranty for added assurance.

FAQs of Marzoli Ring Frame Spindle Bolster:

Q: How do I install the Marzoli Ring Frame Spindle Bolster on my spinning machine?

A: Installation is user-friendly due to its standardized dimensions (290 mm length, 40 mm diameter) and single spindle lock hook. Align the bolster with the spindle slot, secure with the 25MM x 1.5 pitch thread, and ensure proper seating to maximize stability and performance.

Q: What benefits does using EN-31 and aluminum materials offer for this spindle bolster?

A: EN-31 provides exceptional hardness and wear-resistance, while aluminum contributes to a lightweight yet robust construction. This combination ensures durability, higher performance, and a rust-free surface for long-lasting industrial use.

Q: When should the spindle bolster be replaced during regular operation?

A: Under normal industrial workloads and proper maintenance, the spindle bolster, backed by a 1-year warranty, lasts for extended periods. However, it should be inspected during routine maintenance and replaced if there are any signs of wear, deformation, or abnormal noise.

Q: Where is the Marzoli Ring Frame Spindle Bolster manufactured and exported from?

A: This spindle bolster is manufactured, supplied, and exported from India by reputed industry specialists, assuring compliance with strict international quality standards.

Q: What is the process for maintaining the spindle bolsters rust-free and polished finish?

A: Routine cleaning with recommended non-corrosive agents and periodic inspection for surface residues helps retain its polished, rust-free appearance. Avoid exposure to harsh chemicals or moisture for prolonged durations.

Q: How can this spindle bolster enhance the operation of my spinning machine?

A: Featuring precision engineering, high-speed capability (up to 25,000 RPM), and robust construction, this spindle bolster reduces vibration and noise (75 db), leading to smoother yarn production and improved machine efficiency.
