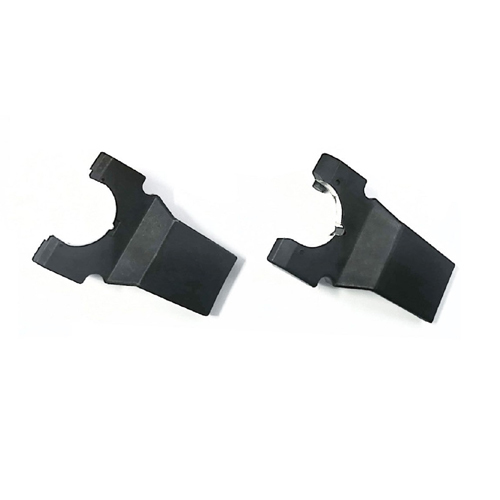

Spindle Brakes

Name: Spindle Brakes
Brand: VINDEX INDUSTRIES
Price: 40.0 INR
Availability: InStock

Price 40.0 INR/ Piece

Get a Price/Quote

Spindle Brakes Specification

Noise Level
75 db

Features
SPINDLE BREAK

Automation Grade
AUTO DOFFING SPINDLE BREA

Surface Finish
PLASTIC FINISHING

Diameter
32 Millimeter (mm)

Capacity
4997 Pcs/hr

NO. Of Hole
1

Product Type
Textile Machinery Components

Material
Plastic

Spare/Component Type
Other

Usage
Other

Speed
25000 RPM

Dimension (L*W*H)
32 Millimeter (mm)

Weight
50 Grams (g)

Warranty
1 Year

Spindle Brakes Trade Information

Minimum Order Quantity
100 Pieces

FOB Port
Mundra Port

Payment Terms
Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
21 Days

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
BOX PACKING OR WOODEN BOX

Main Domestic Market
All India

About Spindle Brakes

Spindle Brakes are engineered to enhance the efficiency and precision of rotating components in textile machinery. Crafted from durable plastic, they are lightweight yet robust, ensuring consistent performance in demanding industrial environments. With a weight of 2 kilograms, these brakes are designed for seamless integration into textile applications, where precise control of rotating parts is crucial. Spindle Brakes are manufactured with attention to detail, making them a reliable choice for textile equipment maintenance and performance enhancement. Backed by a 1-year warranty, they promise durability and peace of mind for end users. As an exporter, manufacturer, and supplier, these brakes are an excellent solution for industries aiming to elevate their operational standards while relying on trusted components for their rotating systems.

A spindle brake is a mechanical or pneumatic system used in ring spinning machines to stop the rotation of the spindle quickly and safely, especially during machine stoppage, yarn breakage, or doffing operations.

Function of Spindle Brake

Purpose	Description
1. Quick Stop	Halts spindle immediately when machine stops or doffing starts
2. Safety Mechanism	Prevents over-spinning, vibration, and yarn damage
3. Doffing Assistance	Allows operators or auto-doffer to safely remove the full bobbin
4. Yarn Quality Protection	Prevents ballooning or entanglement of yarn during sudden machine stop
5. Energy Efficiency	Stops idle rotation, reducing power loss

Where It Is Used (Applications)

Spindle Brakes are used in:

Machine Type	Application Area
Ring Frame	On each individual spindle shaft
Doubling Frame	For controlling doubled yarn windings
Compact Spinning	As part of auto-control mechanism
Auto Doffer Systems	Needed for safe doffing

Working Principle

Mechanical Brake (Spring Type):

A spring-loaded pad or shoe presses against the spindle shaft.
When machine stops spring pulls the brake friction stops spindle.

Pneumatic Brake (Air Type):

Uses compressed air to engage or release brake pad.
During auto doffing air pressure applies brake spindle stops instantly.

Electromagnetic Brake (Rare):

Uses magnet coil to generate force for braking.
Used in high-end automatic machines or high-speed setups.

Parts of a Spindle Brake System

Part Name	Description
Brake Shoe/Pad	Provides friction against spindle shaft
Brake Spring	Pulls brake into action mechanically
Bracket/Frame	Holds the brake mechanism
Pneumatic Cylinder	Controls brake in air-operated systems
Solenoid Valve	Controls air to brake (in auto systems)
Actuator Rod	Connects brake to motion

Famous Machines That Use Spindle Brakes

Brand	Models with Spindle Brake
LMW	LF1400, LF1660, LF4200
Rieter	G33, G35, G37, G38 (with auto doffer)
Zinser	71, 72XL, 351, 451
Marzoli	FT series ring frames
Toyota (KKTM)	RX Series

Advantages of Spindle Brake

Feature	Benefit
Fast response time	Improves safety & production speed
Reduced yarn breakage	Enhances yarn quality
Supports automation	Works with auto doffer and digital control
Longer spindle life	Prevents unnecessary idle spinning

Common Problems & Maintenance

Issue	Cause	Solution
Spindle not stopping	Worn pad / low air pressure	Replace pad / check pneumatics
Uneven braking	Uneven spring tension	Adjust or replace springs
Brake delay in auto doffing	Solenoid/valve failure	Check air supply and control
Noise during braking	Loose or misaligned parts	Tighten or replace faulty parts

Manufacturers & Suppliers (India & Global)

Supplier Name	Country	Type of Brake Supplied
Texparts (Saurer)	Global	Precision mechanical brakes
Rieter Original Parts	Switzerland	Air brakes for G series
LMW	India	Spring & pneumatic type
Marzoli	Italy	Spring-loaded spindle brakes
Local OEM Vendors	India, China	Cost-effective brake spares
