Flyer Figure

Name: Flyer Figure
Brand: VINDEX INDUSTRIES
Price: 5500.0 INR
Availability: InStock

Price 5500.0 INR/ Piece

Get a Price/Quote

Flyer Figure Specification

Thread Type
NO

Mounting Type
NO

Size
STANDRAND

Hardness
Rockwell

Surface Finish
POLISHING

Capacity
1000 Pcs/hr

Features
BOBIN SPEED FRAME FLYER

Noise Level
75 db

Automation Grade
SPEED FRAME FLYER

NO. Of Hole
1

Product Type
Textile Machinery Components

Material
Steel

Textile Machine Type
Swing Machine

Spare/Component Type
Frame

Usage
Industrial

Speed
1500 RPM

Weight
2 Kilograms (kg)

Warranty
1

Flyer Figure Trade Information

Minimum Order Quantity
100 Pieces

FOB Port
Mundra Port

Payment Terms
Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
21 Days

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
BOX PACKING OR WOODEN BOX

Main Domestic Market
All India

About Flyer Figure

Flyer is a critical component in Speed Frame (Simplex Frame) machines, used before Ring Frame in the yarn manufacturing process.

Function of a Flyer

Twisting: Applies light twist to the drafted sliver.
Winding: Guides the roving (semi-spun yarn) onto a bobbin.
Rotating Mechanism: Rotates around the bobbin while feeding the roving.

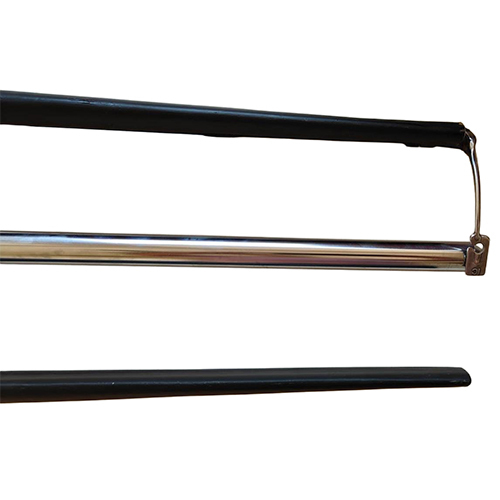

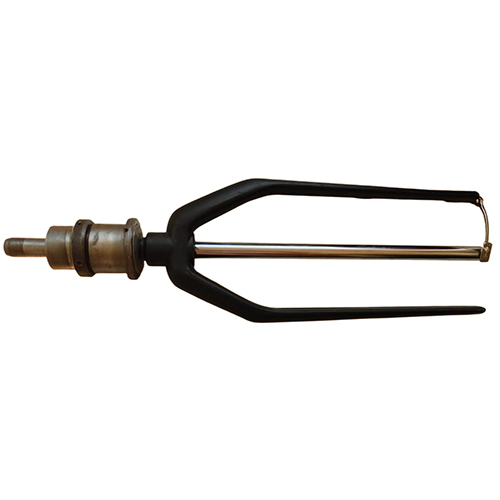

The flyer has two arms (fork-type shape), and one arm contains a flyer top or nozzle where the roving passes and winds on the bobbin.

Parts of a Flyer

Part	Description
Flyer Arm	U-shaped rotating arm
Flyer Spindle	Central rotating shaft driven by machine motor
Flyer Top (Nozzle)	Guides the roving to wind evenly

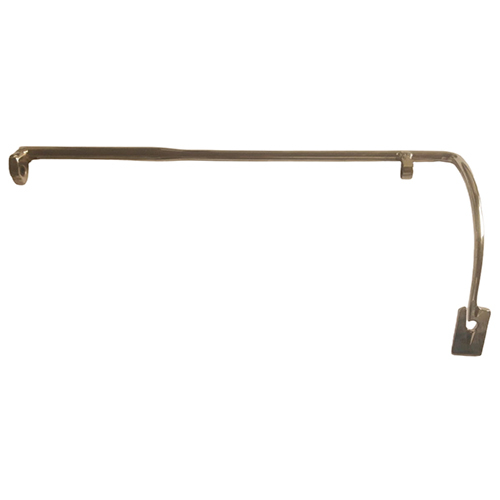

Presser	Helps control the winding tension
Bearing (Flyer Bottom)	Provides smooth rotation, often special bushing or ball
Bobbin	Collects the roving

Flyer Sizes & Specifications

Flyers vary depending on machine brand and roving count, but commonly:

Material: Aluminum alloy or Steel with powder coating
Dimensions: E.g. 16" x 6", 20" x 6.5"
Weight (approx): 1.2 to 2.5 kg per flyer (depends on size & make)
Balancing: Dynamic balancing required for high-speed running

Flyer Usage by Machine Types

Machine Brand	Flyer Compatibility
LMW LF series	LF1400, LF1660, LF4200 Different flyer types
Rieter	F10, F15, F35, F40 Specific flyer dimensions
Toyoda / Zinser	Imported flyers with clip/nozzle types
Marzoli	FT series Flyers with standard fitting

Maintenance Tips for Flyers

Check for wear on flyer top (nozzle area).
Ensure dynamic balancing during high-speed use.
Use proper cleaning and lubrication on spindle bearing area.
Replace if bent, vibrates, or if winding is uneven.

Common Accessories

Flyer top bush
Flyer bearing
Flyer holder/clip
Presser arm/spring
Flyer balancing weights

Engineered for High-Speed Textile Production

Designed for the demanding environment of industrial textile manufacturing, the Flyer Figure integrates seamlessly into swing machines to maximize speed and output. Its robust steel material and polished surface enhance operational reliability and resistance to wear.

Optimized Efficiency and Output

Operating at an impressive 1500 RPM, this flyer component supports a capacity of up to 1000 pieces per hour. The standard size and single-hole configuration ensure easy installation, while the low noise level (75 db) promotes a comfortable workspace.

Quality Assurance and Support

As an exporter, manufacturer, and supplier based in India, we provide comprehensive service and a 1-year warranty on each Flyer Figure. Each unit undergoes stringent quality checks to guarantee performance and satisfaction, keeping your operations running smoothly.

FAQs of Flyer Figure:

Q: How is the Flyer Figure installed in textile swing machines?

A: The Flyer Figure is designed in a standard size for straightforward installation onto swing machines. Its single-hole configuration allows secure mounting without requiring complex setup, streamlining machine assembly and maintenance.

Q: What benefits does the BOBIN SPEED FRAME FLYER feature provide?

A: This feature enhances the flyers rotational speed, enabling your swing machine to reach up to 1500 RPM and process 1000 pieces per hour. The result is increased efficiency and throughput for industrial textile production.

Q: When should the Flyer Figure be replaced during operations?

A: Replacement is suggested if you observe decreased performance, excessive noise above rated levels, visible wear on the steel frame, or reduced output. Regular inspections based on operational hours can help optimize the flyers lifespan.

Q: Where is the Flyer Figure manufactured and available for export?

A: The Flyer Figure is manufactured in India, where we serve as both export and domestic suppliers. We cater to global textile manufacturers and distributors seeking reliable, high-speed spare frames.

Q: What is the process for maintaining the Flyer Figure?

A: Maintain performance by regularly cleaning the polished steel surface, inspecting for wear, and ensuring the flyer remains securely mounted. Lubricating adjacent machine components may further extend its operational life.

Q: Can the Flyer Figure be used with other types of textile machines?

A: This frame is specifically intended for swing machines, optimized for compatibility and performance within their operating environment. For other textile machines, please verify specifications to ensure proper fit and function.

Q: What are the usage safety considerations for this flyer component?

A: Operate the Flyer Figure within its rated speed (1500 RPM) and noise levels (75 db). Follow manufacturer guidelines for mounting and maintenance to ensure safe and efficient use. The steel frame construction contributes to user safety and durability.
